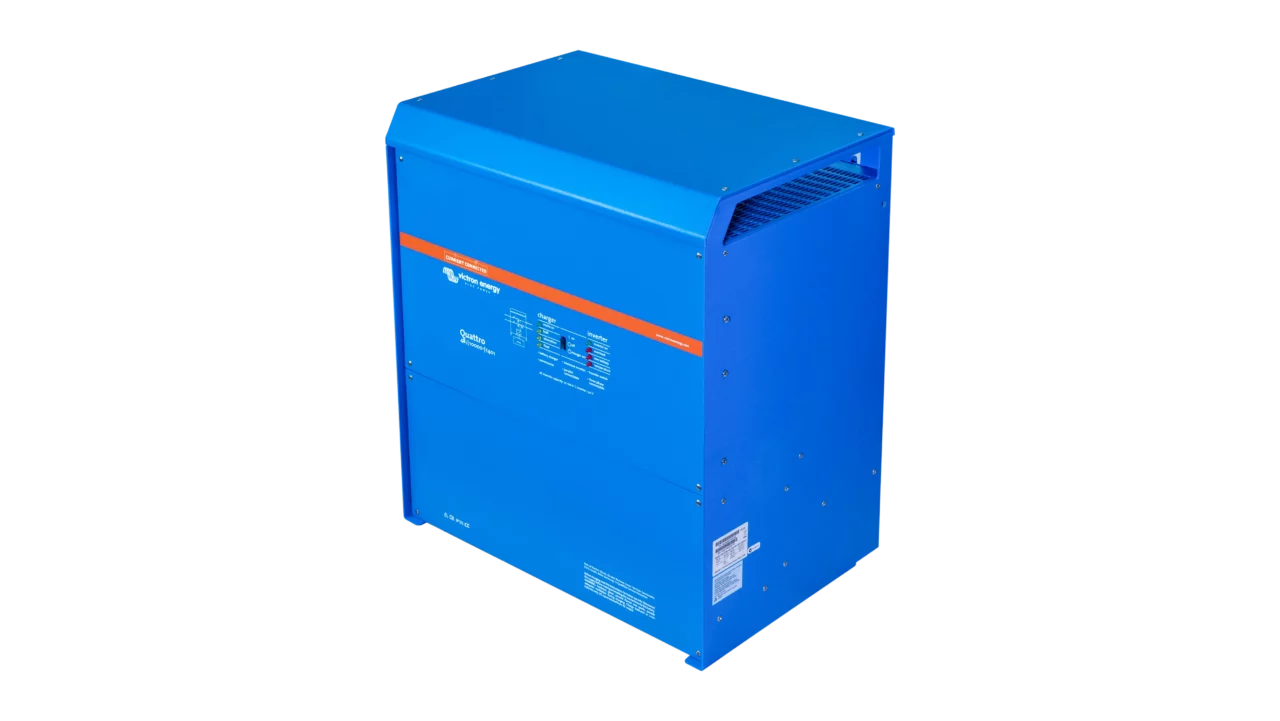

Victron Quattro 10kVA 8kW 48V Inverter-Charger

Technical specifications
Inverter

• Input voltage range (V DC): 9,5 – 17V, 19 – 33V, 38 – 66V.
• Output voltage: 230 VAC ± 2%.
• Output Frequency: 50 Hz ± 0,1%.
• Cont. output power at 25°C (VA): 10 000.
• Cont. output power at 25°C (W): 8000.
• Cont. output power at 40°C (W): 6500.
• Cont. output power at 65°C (W): 4500.
• Peak power (W): 20 000.
• Maximum efficiency (%): 96.
• Zero load power (W) 55.
• Zero load power in AES mode (W): 35.
• Zero load power in Search mode (W): 20.

Charger

• Charge voltage ‘absorption’ (V DC): 57,6.
• Charge voltage ‘float’ (V DC): 55,2.
• Storage mode (V DC): 52,8.
• Charge current house battery (A): 140.
• Charge current starter battery (A): 4 (12V and 24V models only).
• Battery temperature sensor: Yes.

General

• Power Control / Power Assist: Yes.
• Integrated Transfer switch: Yes.
• AC Input voltage range (x2): 187-265 VAC
• Input frequency: 45 – 65 Hz.
• Power factor: 1.
• Maximum feed through current (A): 2 x 100.
• Auxiliary output (A): 50.
• Programmable relay: 3x.
• VE. Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
• General purpose com. port: 2x.
• Remote on-off: Yes.
• Operating temp.: -40 to +65˚C.
• Humidity (non-condensing): max. 95%.

Enclosure

• Material & Colour: aluminium (blue RAL 5012).
• Protection category: IP 21.
• Battery-connection: Four M8 bolts (2 plus and 2 minus connections)
• 230 V AC-connection: M6 Bolts.
• Weight (kg): 45.
• Dimensions (hxwxd in mm): 470 x 350 x 280.
